1. WYPH Ultrasonic Module HC-SR04 Distance Measuring Ranging Sensor for Arduino UNO Mega R3 Mega2560 Duemilanove Nano Robot Pack of 10pcs
Feature
- Using IO trigger for at least 10us high level signal
- The module automatically sends eight 40 kHz and detect whether there is a pulse signal back
- If the signal back, through high level ,time of high output IO duration is the time from sending ultrasonic to returning. Test distance = (high level time velocity of sound (340M/S) /2
- Power supply :5V DC, quiescent current : <
- 2mA,effectualangle: <
- 15 ranging distance : 2cm~500 cm resolution : 0.3 cm
- Package Content: 10pcs HC-SR04
Description
There are 4 pins out of the module: VCC , Trig, Echo, GND. So it’s a very easy interface for controller to use it ranging.
The all process is: pull the Trig pin to high level for more than 10us impulse, the module start ranging;
Finish ranging, If you find an object in front, Echo pin will be high level, and based on the different distance, it will take the different duration of high level.
So we can calculated the distance easily: Distance = ((Duration of high level)*(Sonic :340m/s))/2

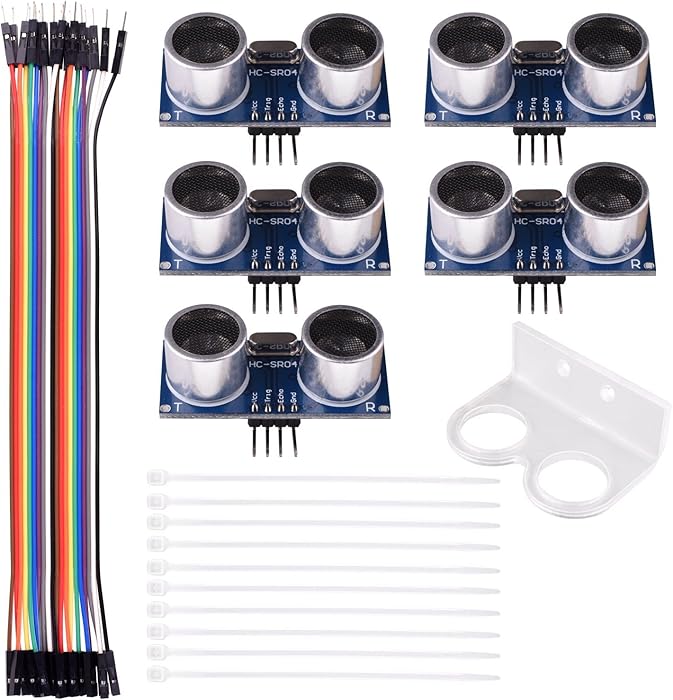

2. Longruner 5 x HC-SR04 Ultrasonic Sensor, ArduinoIDE Distance Sensor Robot XBee ZigBee with Ultrasonic Transmitter and Receiver Module
Feature
- Using IO trigger for at least 10us high level signal.
- There are 4 pins out of the module: VCC , Trig, Echo, GND.
- The Module automatically sends eight 40 kHz and detect whether there is a pulse signal back.
- Distance= ((Duration of high level)*(Sonic :340m/s))/2
- Power supply: 5V DC
- quiescent current : <
- 2mA
- effectualangle: <
- 15
- ranging distance: 2cm~500cm
- resolution: 0.3 cm
Description
Longruner 5 x HC-SR04 Ultrasonic Sensor, for ArduinoIDE Distance Sensor Robot XBee ZigBee with Ultrasonic Transmitter and Receiver Module The HC-SR04 ultrasonic sensor uses sonar to determine distance to an object like bats do. It offers excellent non-contact range detection with high accuracy and stable readings in an easy-to-use package. From 2cm to 500 cm or 1” to 13 feet. It operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect). It comes complete with ultrasonic transmitter and receiver module. Features: Power Supply: +5V DC Quiescent Current: Working Current: 15mA Effectual Angle: Ranging Distance: 2cm – 500 cm/1″ – 13ft Resolution: 0.3 cm Measuring Angle: 30 degree Trigger Input Pulse width: 10uS Dimension: 45mm x 20mm x 15mm Pins VCC: +5VDC Trig: Trigger (INPUT) Echo: Echo (OUTPUT) GND: GND Package includes: 5* HC-SR04 Ultrasonic Distance Sensor 1*HC-SR04 Bracket 1*Male to Femal jump wires 20pin 10*cable ties for fixing HC-SR04(as a gift) NOTE: If the HC-SR04 does not receive an echo then the output never goes low. Devantec and Parallax sensors time out after 36ms and I think 28ms respectively. If you use Pulsin as above then with no return echo the program will hang for 1 second which is the default timeout for Pulsin. You need to use the timeout parameter. If you have any question, please be free to contact us, we will try our best to help you. Service Email: [email protected]
3. Excelity 3pcs Ultrasonic Module HC-SR04 Distance Sensor with 3pcs Mounting Bracket for Arduino
Feature
- [PACKAGE INCLUDED] 3pcs HC-SR04 distance measurement module & 3pcs mounting bracket for installation
- [FEATURE] These module is for distance measuring transducer that working with ultrasonic, they consist of ultrasonic transmitter, receiver, and control circui
- [FUNCTIONAL PARAMETER] Effectual Angle: <
- 15 degree
- Detection Distance : 2cm~450 cm
- Resolution : 0.3 cm. Power Supply : 5V DC
- Quiescent Current : <
- 2mA
- [UNIVERSAL COMPATIBILITY] Built in standard interface that can be controlled directly by microcontroller，such as Arduino , 8051, AVR, also comply with Arduino library
- [WORKING PRINCIPLE] Using IO trigger for at least 10us high level signal, when triggered it sends out a series of 40KHz ultrasonic pulses and receives echo from an object, the duration of the signal is the time from sending ultrasonic to returning.The distance = (duration time * sound velocity (340M/S) / 2
Description
Excelity HC-SR04 Ultrasonic Moudle is to measure the distance of object by 40KHz ultrasonic sound wave. This moulde provides 2cm-400cm non-contact measurement function, the ranging accuracy can reach to 3mm. It is great for the project that need distance measurement, such as Distometer,intelligent robot navigation system,etc.
Module main technical parameters:
-Working Voltage : 5V(DC) -Static current: Less than 2mA
-Output signal: Electric frequency signal, high level 5V, low level 0V -Sensor angle: Not more than 15 degrees
-Detection distance: 2cm-450cm. -High precision: Up to 0.3cm
-Input trigger signal: 10us TTL impulse -Echo signal : output TTL PWL signal
Pin definition:
-VCC: connect to 5V DC -Trig(T): control pin, connect to a standard I/O port
-Echo(R):receiving end, connect to a standard I/O port -GND: Connect to Ground
Notes:
-1. The module should be inserted in the circuit before been powered to avoid producing high level of misoperation; if producted, power it again. -2. Before connect to VCC terminal, the GND terminal should be connected the module first,otherwise,it will affect the normal work of the module.
Module Working Principle:
-1. Pull the Trig pin to high level for more than 10us impulse, the module start ranging. -2. The module automatically sends eight 40KHz square wave to detect whether a signal is returned.
-3. Finished ranging, If you find an object in front, Echo pin will be high level, and based on the different distance, it will take the different duration of high level. -4. Calculated the distance, the distance = (high level time * sound velocity (340M/S) / 2.
Package included:
-3pcs HC-SR04 Moulde -3pcs Mounting Bracket
4. ELEGOO 5PCS HC-SR04 Ultrasonic Module Distance Sensor for Arduino UNO MEGA2560 Nano Robot XBee ZigBee
Feature
- Ultrasonic hc-sr04 distance measuring transducer sensor
- HC-SR04 consists of ultrasonic transmitter, receiver, and control circuit. When trigged it sends out a series of 40KHz ultrasonic pulses and receives echo from an object.
- ~Power supply: 5V DC
- quiescent current: less than 2mA
- effectual angle: less than 15°
- distance: 2cm500cm
- resolution: 0. 3 cm~
- Package Content: 5pcs HC-SR04 with a little gift
5. 5Pcs Ultrasonic Sensor Module Kit HC-SR04 Distance Sensor with 3pcs Mounting Bracket Compatible with Arduino UNO Mega R3 Mega2560 Duemilanove Nano Rapsberry Pi 3 Robot XBee ZigBee
Feature
- Quality — Power Supply : 5V DC
- Quiescent Current : <
- 2mA
- Effectual Angle: <
- 15 degree
- Detection Distance : 2cm~450 cm
- Resolution : 0.3 cm.
- Operating Principle — Ultrasonic hc-sr04 distance measuring transducer sensor, it consists of ultrasonic transmitter, receiver, and control circuit.
- HC-SR04 ultrasonic sensor module — Using IO trigger for at least 10us high level signal, when triggered it sends out a series of 40KHz ultrasonic pulses and receives echo from an object, the duration of the signal is the time from sending ultrasonic to returning.
- Test Distance Formula — The distance between the unit and the object is calculated by measuring the traveling time of sound and output it as the width of a TTL pulse,hc-sr04 test distance following formula — L = 1/2 × T × C ( L is the distance, T is the time between the emission and reception, and C is the sonic speed )
- Package Include — 5 X HC-SR04 Ultrasonic Sensors , 10 X Female-Male Dupont Cables , 10 X Female-Female Dupont Cables
6. LV-MaxSonar-EZ1 Ultrasonic Range Finder
7. SunFounder Ultrasonic Module HC-SR04 Distance Sensor for Arduino R3 Mega2560 Duemilanove Nano Robot Rapsberry Pi 4B 3B+, 3B, 2 Model B & 1 Model B+
Feature
- Ultrasonic hc-sr04 distance measuring transducer sensor, it consists of ultrasonic transmitter, receiver, and control circuit.
- HC-SR04 Ultrasonic Sensor Distance Module: using IO trigger for at least 10us high level signal，When triggered it sends out a series of 40KHz ultrasonic pulses and receives echo from an object.
- Hc-sr04 Test Distance following formula: L = 1/2 × T × C ( L is the distance, T is the time between the emission and reception, and C is the sonic speed)
- Power Supply : 5V DC
- Quiescent Current : <
- 2mA,
- Effectual Angle: <
- 15°
- Detection Distance : 2cm~450 cm
- Resolution : 0.3 cm
- Package Content: 5 HC-SR04 Ultrasonic Sensors , 10 Female-Male Dupont Cables , 10 Female-Female Dupont Cables , 1 Exquisite package box
8. PING Ultrasonic Distance Sensor
Feature
- Our PING))) ultrasonic sensor provides an easy method of distance measurement. This sensor is perfect for any number of applications that require you to perform measurements between moving or stationary objects. A single I/O pin is used to trigger an ultrasonic burst (well above human hearing) and then “listen” for the echo return pulse. The sensor measures the time required for the echo return, and returns this value to the microcontroller as a variable-width pulse via the same I/O pin
Description
Key Features: -Provides precise, non-contact distance measurements within a 2 cm to 3 m range -Ultrasonic measurements work in any lighting condition, making this a good choice to supplement infrared object detectors -Simple pulse in/pulse out communication requires just one –I/O pin -Burst indicator LED shows measurement in progress -3-pin header makes it easy to connect to a development board, directly or with an extension cable, no soldering required
9. MaxBotix Inc. Ultrasonic Sensor for UAVs, Robots, Autonomous Navigation, Distance Measuring and More. | MB1040-000 LV-MaxSonar-EZ4 | Range from 6 inches to 254 inches
