Top 10 Grizzy 15 Hp Motor

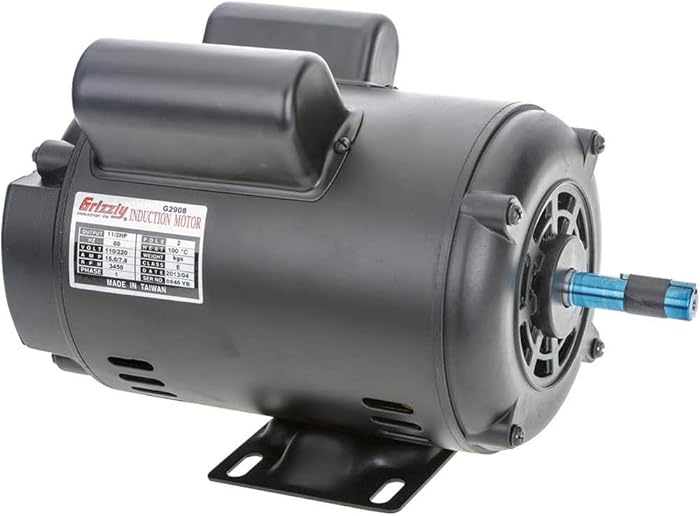

Made to demanding specifications, these motors offer the same quality as the motors we install on our heavy-duty machines. All our motors are standard NEMA 56 frames and fit over 90% of the woodworking machinery on the market. These Open Drip Proof Motors (Open) are excellent replacement motors for use in relatively clean environments. Ideal for drill presses, fans, and bench machinery. Motors are dual voltage (110/220V) capacitor start. They feature standard NEMA 56 frames, all ball bearing construction, reversible rotation, 5/8″ shafts, and are rated for continuous duty. Not for air compressor use. Specifications:Type: OpenSize: 1-1/2 HPRPM: 3450AMPS @ 110V/220V: 15.6A/7.8AReversible rotation Full 1 Year Warranty!

Product Description

The new electric motor 121556, an electrical machine that converts electrical energy into mechanical energy. This is a 1.5 hp SHDC electric motor that is commonly used for the matching of water pumps, agricultural machinery and general equipment. A 115/230 volt electric motor that turns at 3450 RPM. A single phase motor that has a rigid base and 5/8 inch keyed shaft.

Feature

1.5 HP and 56C frame

3450 RPM rated speed

3600 RPM synchronous speed

Single phase with 5/8 inch keyed shaft

Waterproof can be used outdoors

Converts electrical energy into mechanical energy

Applicable to the matching of water pumps

Suit for agricultural machinery and general equipment

Specifications

Model: 121556

Type: SHDC

Phase: Single phase, 2 pole

Horsepower: 1.5 HP

Voltage: 115/230 V

Full load amps: 14.2/7.1 A

Frequency: 60 Hz

Rated speed: 3450 RPM

Synchronous speed: 3600 RPM

Frame: 56C Frame

Shaft diameter: 5/8 inch Keyed shaft

Shaft length: 1.875 inch

Rotation: CW-CCW

Service factor: 1.15

Efficiency: 80%

ENC: TEFC

Insulation Class: F

Package Content

1 x Electric Motor

AC motor, 1.5Hp, 1725Rpm, 3pH/60Hz, 208-230/460VAC, 56C/TEFC, with foot, sf 1.15, insulator F, inverter duty.

1.5 hp – 56 Frame – 3430rpm – Single Phase – 115 / 208-230volt – 5/8″ shaft diameter – 1.874″ shaft length Please see attached Pics for motor dimensions and frame dimensions Technical Info: Horsepower: 1.5 Amperage: 8.40 fl amps at 230v Phase: One / Single Phase 2 pole Voltage: 115 / 208-230 RPM: 3430 Torque: 2.27lb.ft Base: Reinforced fixed base Frame: 56 Shaft Diameter: 5/8″ Keyed shaft Shaft Length: 1.874″ Rotation: Reversible CW or CCW Rotation Frequency: 60hz Service Factor: 1.00 @ 230v Enclosure: ODP Open Drip Proof (internally fan cooled) Construction: Rolled Steel Overload: Yes – Manual reset button Efficiency: (100%) 68.0 Weight: 40 lb

Made to demanding specifications these motors feature the same quality as the motors we install in our heavy-duty machines. all our motors are standard name 56 frames and fit over 90% of the woodworking machinery on the market. if you have applications where dust oil chip or other foreign particles are the norm rather than the exception you should use the totally enclosed fan cooled motors (enclosed). by popular demand we have added the open drip proof motors (open). these high quality motors are excellent replacement motors for use in relatively clean environments. ideal for drill presses fan and bench machinery all motors are dual voltage (110/220v) capacitor start. they feature standard name 56 frames all ball bearing construction reversible rotation 5/8-Inch shafts and are rated for continuous duty. type: enclosed size: 1/3 hip rpm: 1725 amps at 110v/220v: 6.1/3.1.
